Processes Management

This feature allows an administrator to manage the background processes registered in the application. It provides a central view to monitor, schedule, run, pause, and delete processes, as well as to inspect their execution history.

Processes Listing

When entering the view, a grid is displayed showing all the processes registered in the system, along with filter controls to narrow down the results.

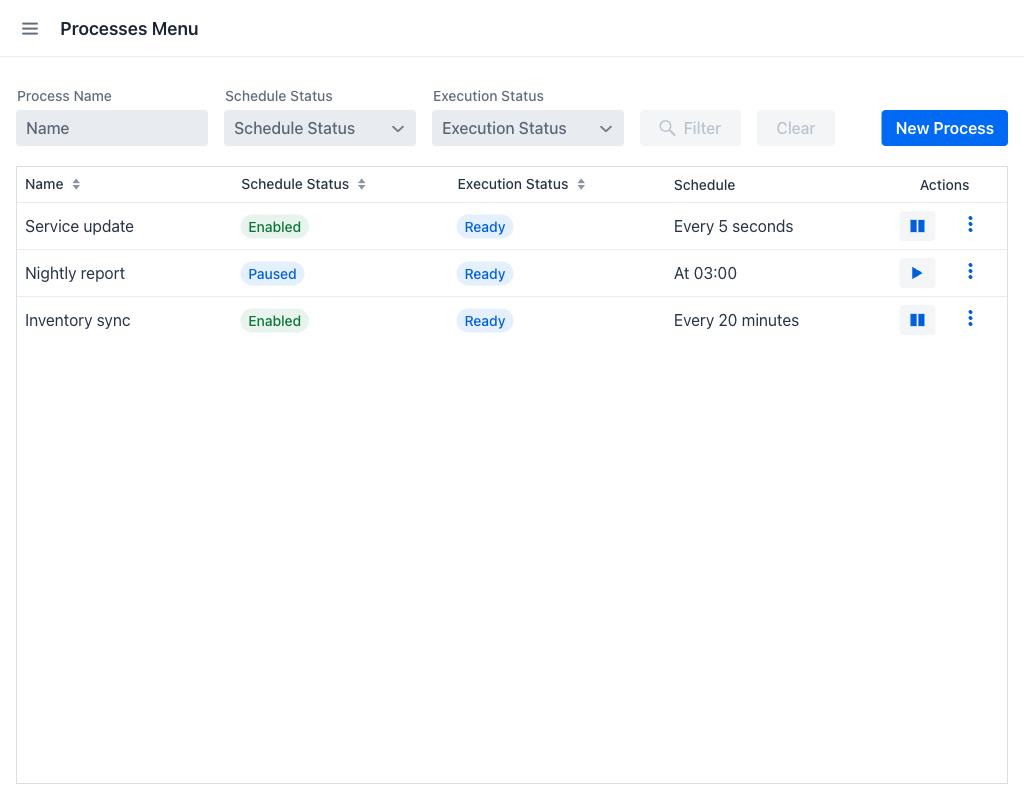

Processes List View

Filters

The following fields are available to filter the processes displayed in the grid:

• Process Name: Filters processes whose name contains the entered text.
• Schedule Status: A dropdown that filters processes by the state of their schedule. See Schedule Status for the list of possible values.
• Execution Status: A dropdown that filters processes by whether they are currently executing. See Execution Status for the list of possible values.

The Filter button becomes active as soon as any filter field has a value. Clicking Clear resets all filters and refreshes the grid.

In the filter area, at the right, there is a New Process button. Clicking it opens the process creation dialog.

On narrow screens the three filter fields are replaced by a single Filter button that opens them in a dialog, and the Schedule column is hidden so that the grid remains readable.

Processes Grid

Below the filter area, a grid displays the matching processes with the following columns:

• Name: The display name of the process.
• Schedule Status: A coloured badge indicating the state of the process schedule. See Schedule Status.
• Execution Status: A badge indicating whether the process is executing right now. See Execution Status.
• Schedule: A human-readable description of the cron expression assigned to the process. Empty if no schedule is set.
• Actions: Inline action buttons and a contextual menu with additional operations. See Process Actions.

Both status badges update on their own, without reloading the view. When a process starts or finishes an execution, or when another administrator pauses or resumes it, the badges and the row actions change for every administrator currently looking at the view.

When there are no processes matching the current filters, a hint message is displayed in place of the grid.

Process Statuses

A process carries two independent statuses. The schedule status describes what the schedule is doing; the execution status describes whether the task is running at this instant. One does not affect the other: a process keeps its schedule status while it executes.

Schedule Status

• Enabled (green): The process has a schedule and will run according to it.
• Paused (default): The process has a schedule but its trigger is cancelled. It can be resumed at any time.
• Unscheduled (yellow): The process has no schedule assigned. It does not run automatically, but it can still be executed on demand.
• Task not found (red): The underlying task implementation could not be found at runtime. The process cannot be executed.

Execution Status

• Running (grey): The process task is executing right now.
• Ready (default): The process is not executing.

Process Actions

Each row in the grid provides a set of actions that vary depending on the current status of the process.

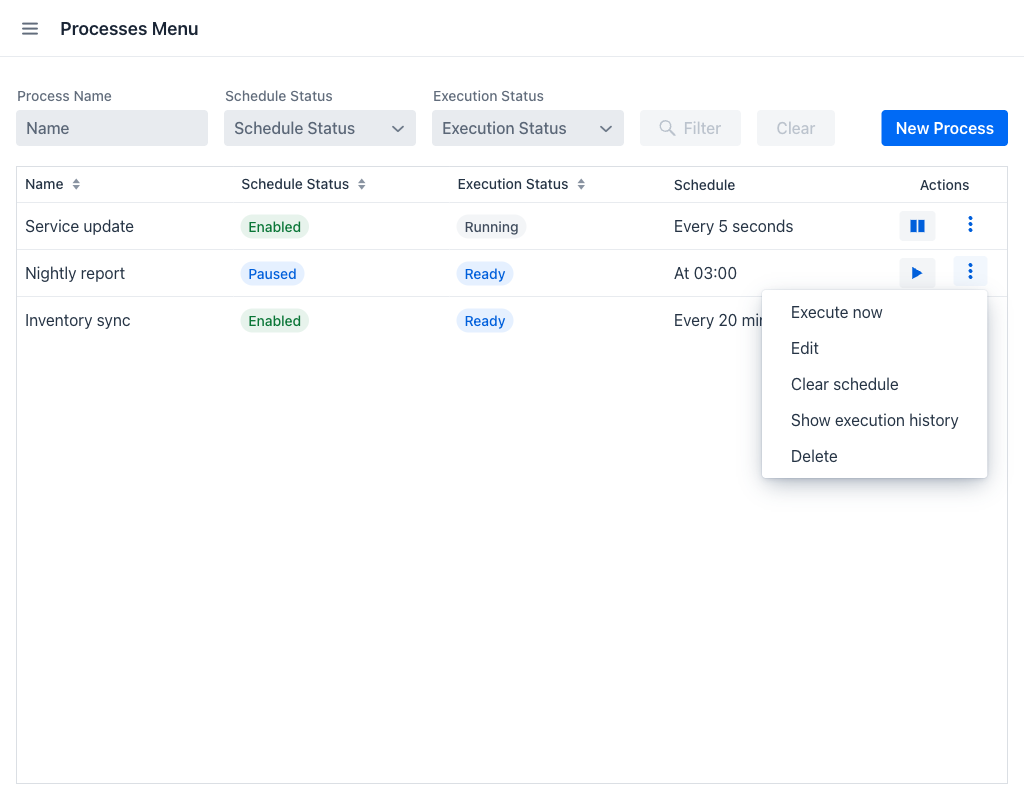

Process Actions contextual menu

Inline buttons

• Play (▶): Resumes a process whose schedule is Paused. It is also shown, disabled, for Unscheduled and Task not found processes.
• Pause (⏸): Pauses a process whose schedule is Enabled.

If a process can no longer be paused when the button is pressed, because its status changed in the meantime, an error notification explains that the transition is not valid.

Contextual menu (⋮)

Clicking the vertical dots icon opens a menu with the following options, depending on the status of the process:

• Execute now: Immediately triggers a single execution of the process, regardless of its schedule. Available for any process whose task can be resolved and that is not already Running. If the process starts executing before the option is confirmed, an error notification explains that it is already running.
• Edit: Opens the process edition dialog. Available for any process whose task can be resolved.
• Clear schedule: Removes the schedule of the process and leaves it Unscheduled. Available when the schedule is Enabled or Paused.
• Show execution history: Opens the execution history dialog for the selected process. Available for all statuses.
• Delete: Deletes the process after confirmation. Available for all statuses.

Process Creation / Edition

Creating or editing a process opens a dialog containing the process form.

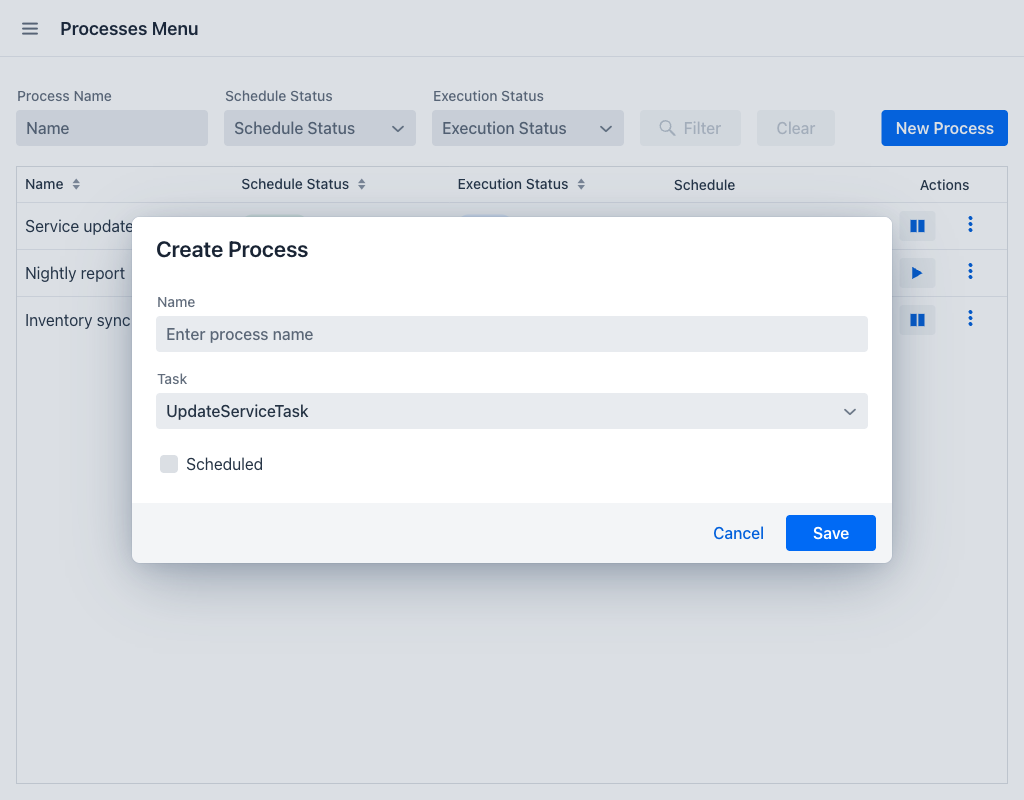

Process creation dialog

Form Fields

• Name: Required. The display name of the process. Must not be empty.
• Task: Required. A dropdown listing all Runnable implementations registered in the application. This determines which logic will be executed when the process runs. The task cannot be changed once the process exists: when editing, the dropdown is read only. To run a different task, delete the process and create a new one.
• Scheduled: A checkbox that reveals the schedule editor described in Defining the Schedule. Clearing it removes the schedule, leaving the process Unscheduled.

Action Buttons

• Save: Validates and persists the form. If validation errors are present, the invalid fields are marked and the dialog stays open. On success, the dialog closes, a confirmation notification is shown, and the grid refreshes.
• Cancel: Discards changes and closes the dialog.
• Delete: Only visible when editing an existing process. Opens a confirmation dialog before permanently removing the process.

Warning

Process deletion is a permanent action and cannot be undone.

Defining the Schedule

The schedule determines when a process runs automatically. It is edited inside the process form: selecting Scheduled reveals a section with two tabs.

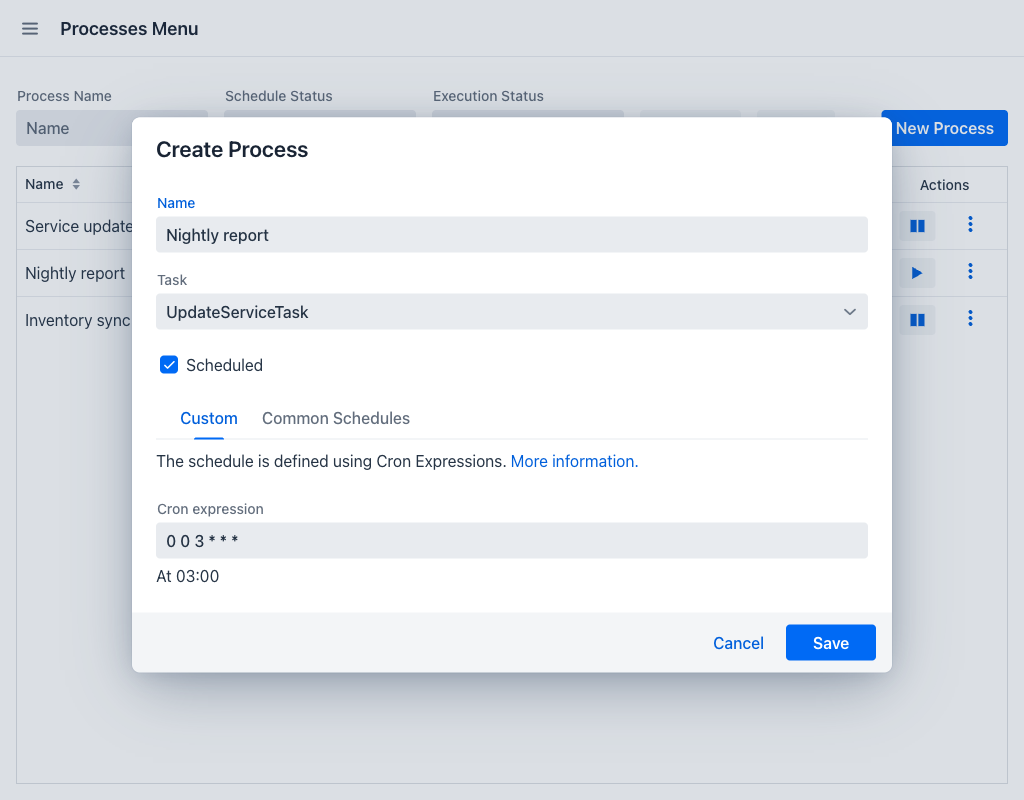

Process form – Custom schedule tab

Custom

Allows entering any valid cron expression manually. As the expression is typed, a human-readable description of it is shown in real time below the field. An invalid expression marks the field and prevents saving. A link to the cron expression reference is provided for help.

Common Schedules

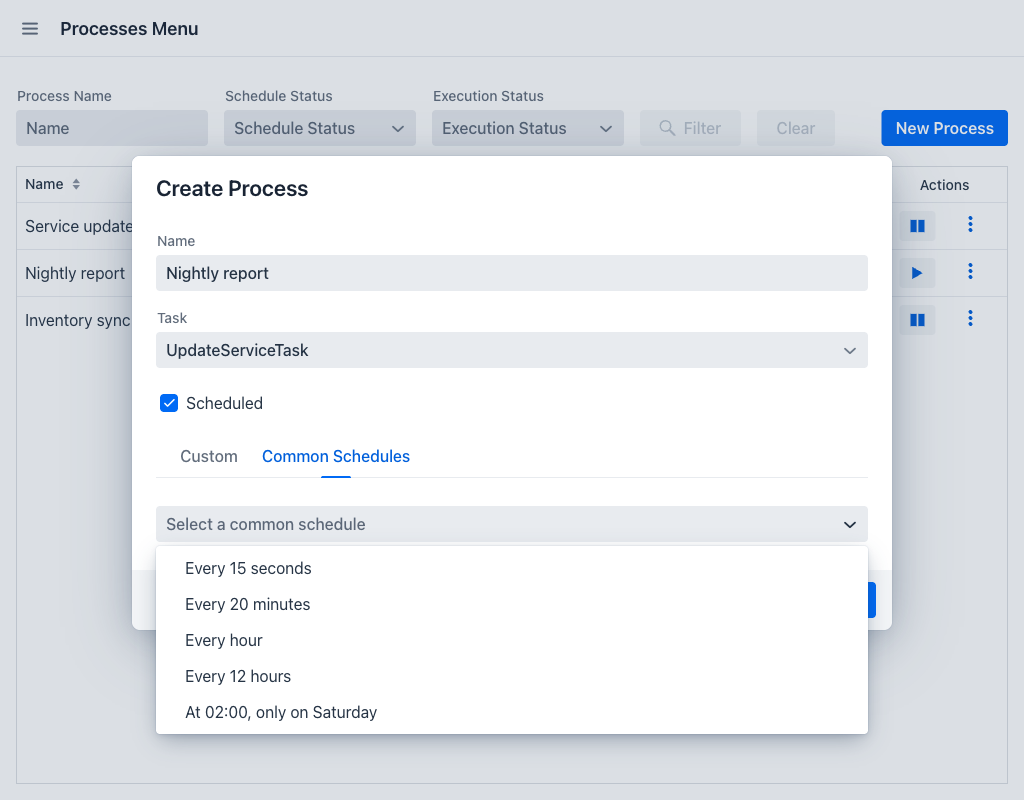

Process form – Common Schedules tab

Provides a dropdown with predefined schedule presets:

• Every 15 seconds
• Every 20 minutes
• Every hour
• Every 12 hours
• At 02:00, only on Saturday

Selecting a preset writes its cron expression into the Custom tab. An expression typed in the Custom tab that matches a preset is selected in this dropdown.

The schedule is stored when the process form is saved. A process saved with a schedule starts out Paused; use the Play button in the grid to activate it. Editing a process whose schedule was Enabled keeps it enabled with the new expression.

Execution History

The execution history dialog shows a log of past executions for a specific process. Its header displays the name of the process and a badge with the total number of executions recorded for it.

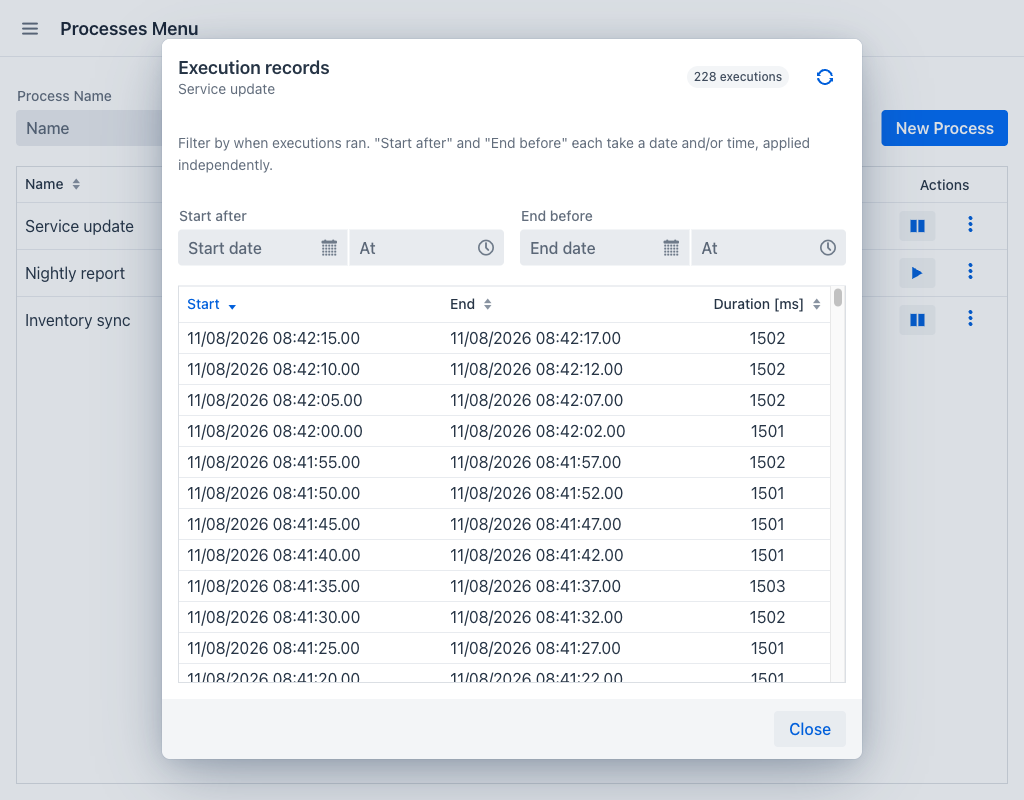

Execution History dialog

Filters

• Start after: Restricts the results to executions that started at or after the given point. The date and the time are independent: setting only the date matches any time on that day onwards, and setting only the time matches that time of day on any day.
• End before: Restricts the results to executions that ended at or before the given point, with the same independent handling of date and time.

Both filters update the grid automatically as values change, and each part can be cleared on its own.

Execution Grid

The grid displays the following columns for each execution record:

• Start: The date and time when the execution started.
• End: The date and time when the execution ended.
• Duration [ms]: The total duration of the execution in milliseconds.

Executions are listed with the most recent first, and every column can be sorted and resized. Times are recorded in UTC and displayed in the time zone of the browser.

A Refresh button in the dialog header reloads the data, and a Close button in the footer dismisses the dialog. When there are no records matching the current filters, a hint message is shown.

Free Mode

When the application runs without a valid Process Manager license, the view operates in free mode. A Limited version bar is displayed above the grid, showing how much of the free allowance is in use. Only one process can exist: the New Process button is disabled once that process has been created, and creating additional processes beyond the allowance disables the row actions.
